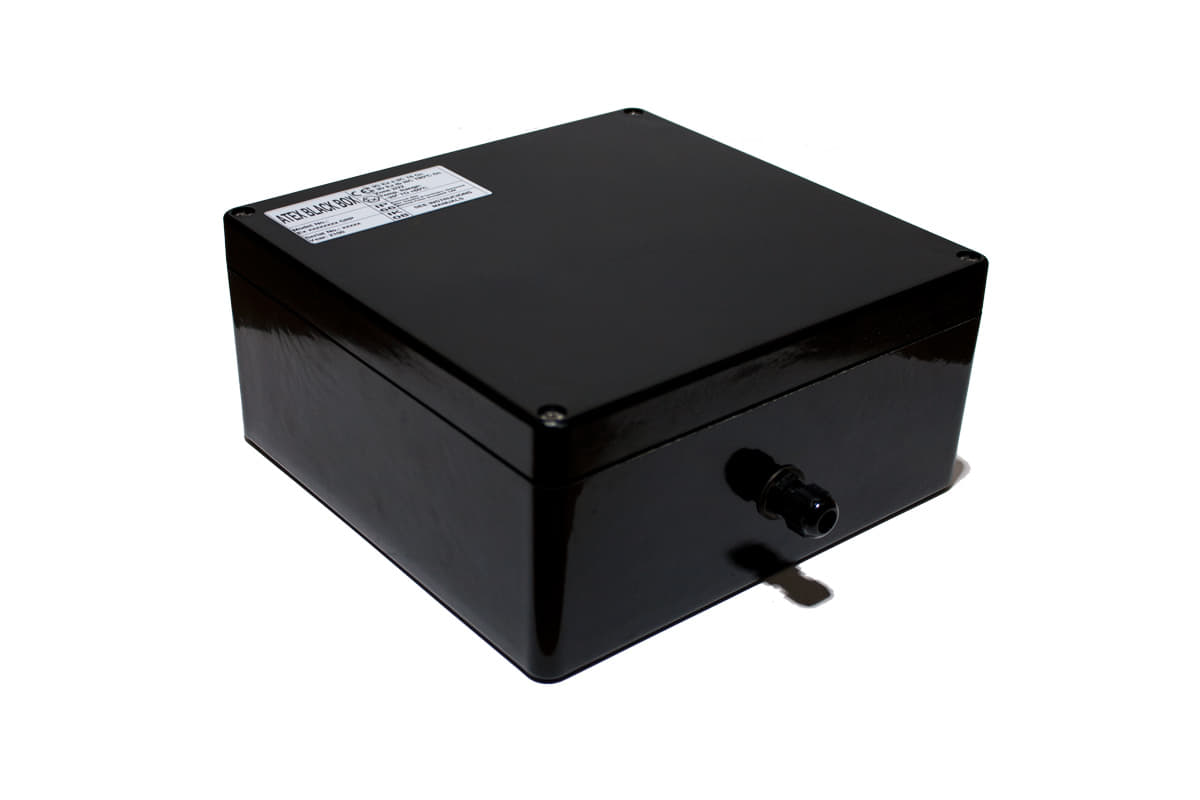

ATEX Junction Box 255x250x120
Enclosure
MATERIAL: Fibre Glass Reinforced Polyester (GRP)
COLOUR: Black (Similar to RAL 9011)
DIMENSIONS: 255x250x120
WEIGHT: 2,75 kg (empty)
Degree of protection: IP65
Gasket: Temperature resistant silicone
Lid screws: Stainless steel
Number of terminals
| 1,5 mm2 | 2,5 mm2 | 4 mm2 | 6 mm2 | 10 mm2 | 16 mm2 | 35 mm2 | 50 mm2 | 70 mm2 | 95 mm2 | 120 mm2 | 240 mm2 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Quantity | 76 | 76 | 63 | 48 | 19 | 16 | 13 | 0 | 0 | 0 | 0 | 0 |
Number of cable entries: METRIC
| M12x1,5 | M16x1,5 | M20x1,5 | M25x1,5 | M32x1,5 | M40x1,5 | M50x1,5 | M63x1,5 | |
|---|---|---|---|---|---|---|---|---|
| face A/B | 30 | 24 | 16 | 10 | 7 | 3 | 2 | 0 |
| face C/D | 28 | 22 | 12 | 9 | 6 | 3 | 1 | 0 |
Number of cable entries: NPT
| 1/2″ NPT | 3/4″ NPT | 1″ NPT | 1 1/4″ NPT | 1 1/2″ NPT | 2″ NPT | |
|---|---|---|---|---|---|---|
| face A/B | 16 | 10 | 7 | 3 | 2 | 0 |
| face C/D | 12 | 9 | 6 | 3 | 1 | 0 |
ATEX BLACK BOX 255x250x120 Drawing
